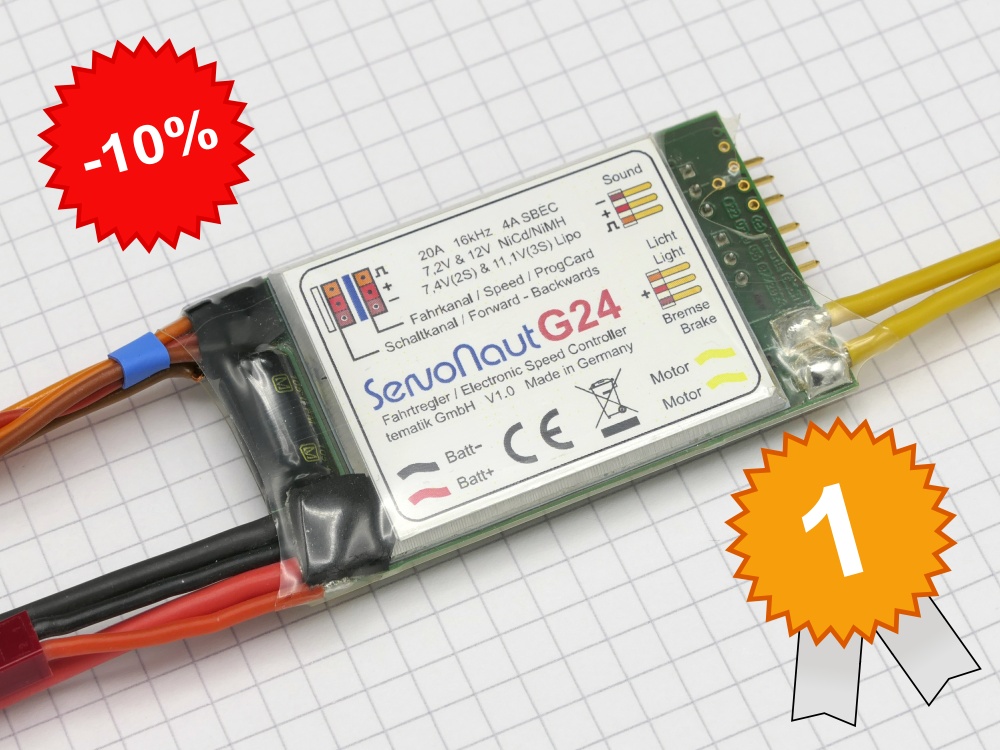

20A speed controller with gear simulation, 4A SBEC and outputs for brake/tail light for function models in sizes 1:16 to 1:8
- Simulates the driving dynamics and gear changes of a 4-speed automatic transmission
- Can be driven with or without "cruise control"
- Optimized for Servonaut GM32 underfloor drives (U360, U390, U430, U450)
- Realistic driving and shifting sounds with all Servonaut sound modules
- Well combinable with, among others, lighting systems LA10 or ML4
- Very high resolution and sensitivity: Over 450 driving steps!
- Transitionless EMK brake, no loss of control when driving downhill
- Robust 5.3V/4A SBEC receiver supply with large cooling surface, especially suitable for 12V drive batteries
- Continuous 16kHz clock frequency, also suitable for bell-type armature, no motor whistle
- Temperature, current, voltage and reception monitoring with motor stop in case of malfunctions (at 40 MHz) or empty battery
- Two 700mA outputs for brake light and reversing light, overload and short-circuit proof for LEDs and/or incandescent lamps
- Realistic brake light already during braking forward as well as backward
- Automatic zero setting with start protection
- Plug&Play: Preset like the G22, but can be adjusted without a computer via the Servonaut CARD interface
- Adjustable is among others the battery type also for LiIon and LiFePo, details see manual
- Occupies one channel (without "cruise control") or two channels (with "cruise control")
- Two diagnostic LEDs for status and error display
- dimensions (mm) only approx. 70 x 38 x 9
- Please note: The G24 does not work together with real mechanical gearboxes! As long as the mechanical gearbox is only shifted when stationary, a combination is still possible.
